SlimLinePics2.pngSlimline hot-water radiant baseboard is the cutting edge in heating development. Its unobtrusive design is unsurpassed in baseboard heating technology. The baseboard, which measures only 5 1/8" high X 1" deep, compliments any décor.

In wood or carpeted floor applications where radiant floor systems are less effective, Slimline is the perfect alternative to maintain a completely radiant system. Slimline is designed to force heat across the floor and maintain a higher temperature at floor level while not allowing the heat to stratify up underneath the ceiling.


Slimline utilizes a strictly radiant delivery principle to optimize efficiency creating a system up to 40% more efficient than other heating products. In fact, Slimline baseboard can be even more efficient and comfortable than a radiant floor system in many applications. The increase in efficiency is gained by the quick response time of the product allowing for the use of set-back thermostats. Increased comfort is also a result of the quick reaction time of the Slimline product. One of the side effects of radiant floor systems is that there is a tremendous amount of mass that is being heated, which in turn results in very slow heat-up and cool-down times. The effect can be varied temperature swings through out the day and night time heating hours regardless of the thermostat settings.

The Slimline panels are constructed with only the highest quality materials. Two 3/8" thick wall copper pipes are fastened into the aluminum extruded panel utilizing a heat conductive paste to ensure optimal heat transfer.

*Profile Specifications - 220 BTU’s/hr.@180°F@1 gal./min.

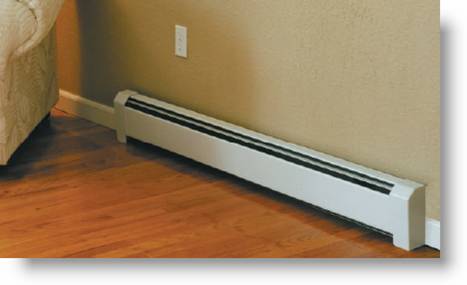

A.I.M. also offers a full line of finned tube type baseboard in standard output, high output and commercial sizes. Finned baseboard offers cost effective alternative to other products due to it greater BTU output per linear foot and ease of installation.

Please contact A.I.M. if you are interested in specifications and installation instructions for the Finned tube lines of baseboard heating panels.

For a brief Slimline Installaion video and Slimline installation manuel click the links below:

Slimline Installation Video Clip
Slimline Installation Manual

SlimlineHeatingPanel
Slimline Heating Panel
Slimline hot water radiant baseboard heating panels are aluminum extrusions with 3/8" copper pipe running through them. The copper pipe protrudes 3" on each end, which allows the use of either copper or PEX Pipe for the panel connections. The Slimline comes with a durable white finish that is guaranteed not to rust. If different colors are preferred, the panels can easily be painted after installation with an oil-based enamel.
SKU A002
$42.46
2 ft. Slimline Heating Panel
SKU A003
$63.68
3 ft. Slimline Heating Panel
SKU A004
$84.92
4 ft. Slimline Heating Panel
SKU A005
$106.14
5 ft. Slimline Heating Panel
SKU A006
$127.38
6 ft. Slimline Heating Panel
SKU A007
$148.60
7 ft. Slimline Heating Panel
SKU A008
$169.84
8 ft. Slimline Heating Panel
SKU A009
$191.06
9 ft. Slimline Heating Panel
SKU A010
$212.29
10 ft. Slimline Heating Panel
SKU A011
$233.52
11 ft. Slimline Heating Panel
SKU A012
$254.75
12 ft. Slimline Heating Panel
SKU A013
$37.93
5 ft. Slimline Filler Panel
The Filler Panel is an 1/8" thick aluminum extrusion used to hide the connections at the ends of the Heating Panels. It is mounted independent of the Heating Panel to eliminate the possibility of the Filler Panel creating noise or creeping off the Corners and End Caps. Filler Panels are field cut with miter saw using a non ferrous, carbide tooth blade. Field cutting is done to ensure the best possible fit and allows the Filler Panel to be installed not just in 90 degree corners, but at almost any angle desired.
HeatingPanelBracket
SKU A014
$7.04
Heating Panel Mounting Bracket
The Heating Panel Mounting Brackets are used to mount the Heating Panel to the wall. They are made of a special self-lubricating plastic, which allows the heating panels to expand and contract with ease, therefore, eliminating the possiblility of noise. This plastic is capable of withstanding temperatures up to 400 degrees F.
FillerPanelBracket
SKU A015
$8.50
Filler Panel Mounting Bracket
Filler Panel Mounting Brackets are used to support the Filler Panel where it meets the Heating Panel, in corners with angles with other than 90 degrees and in flush mount installations. Also designed to eliminate the possibility of noise, these brackets are made of the same self lubricating plastic as the Heatng Panel Mounting Bracket and allow the Filler Panel to be mounted independent of the Heating Panel.
FrontCoverClipA016
SKU A016
$5.87
Front Cover Clip
Front Cover Clips are used to hide the 3/16" gap required between the Filler Panel and the Heating Panel for expansion and contraction. They are clipped securely to the Filler Panel and can be used on both left and right connections. The Front Clip gives the installation a stylish and complete look.
EndCapA017
SKU A017
$5.87
End Cap
End Caps are used to support the Filler Panel and give a stylish finish at doorways or to terminate runs of heat. These end caps can be used in both left and right installations eliminating the need to have two different types on hand.
InsideCornerA018
SKU A018
$8.23
Inside Corner
Inside Corners are used to support the Filler Panel in 90 degree inside corners only. The top and bottom spaces are where the supply and return lines are run. The center space can be used to run a supply and return line to a hard to reach adjoining room.
OutsideCornerA019
SKU A019
$9.41
Outside Corner
Outside Corners are used to support the Filler Panel on 90 degree outside corners only. The top and bottom spaces are where the supply and return lines are run. The center space can be used to run a supply and return line to a hard to reach adjoining room.
SKU A021
$3.67
3/8" Barbed X 3/8" Copper Fitting
The 3/8" Barbed X 3/8" Copper Fitting is used to connect Slimline 2000 to 3/8" PEX pipe.
SKU A022
$4.10
3/8" Barbed X 3/8" Barbed Elbow
The 3/8" Barbed X 3/8" Barbed Elbows are utilized to connect the heating panels to 90 degree corners.
SKU A023
$1.23
3/8" Barbed X 3/8" Barbed Straight Connector
A 3/8" Barbed X 3/8" Barbed Straight Connector is used to join or repair two pieces of PEX Pipe
SKU A024
$3.14
3/8" Barbed X 1/2" MPT Adapter
A 3/8" Barbed X 1/2" MPT Adapter is used to conenct 3/8" PEX Pipe to a 1/2" female adapter.
SKU A025
$0.51
3/8" Crimp Ring for Barbed Fittings
3/8" Crimp Rings compress the PEX Pipe onto the barbed fittings to make a permanent connection
Finn Tube Baseboard (Enclosure and 1/2" Element Assembled)
SKU FTBA32
$18.72
2' Enclosure and 1/2" Element Assembled
SKU FTBA33
$26.40
3' Enclosure and 1/2" Element Assembled
SKU FTBA34
$34.20
4' Enclosure and 1/2" Element Assembled
SKU FTBA36
$52.80
6' Enclosure and 1/2" Element Assembled
SKU FTBA38
$74.88
8' Enclosure and 1/2" Element Assembled
SKU HTIB45
$2.62
135 Degree Inside Corner Back
SKU HTIC45
$5.56
135 Degree Inside Corner Top & Front
SKU HTOC45
$8.80
135 Degree Outside Corner
SKU HTFP14-3
$7.82
14" Filler Piece Set (3 pieces)
SKU FTJP2
$2.66
2" Joining Piece Set (3 pieces)
SKU FTCL
$4.53
3" End Cap Left Hand
SKU FTECR
$4.53
3" End Cap Right Hand
SKU HTWC03
$2.57
3" Wall End Piece
SKU HTVEL4
$6.48
4" Hinged Valve Enclosure Left Hand
SKU HTVER4
$6.48
4" Hinged Valve Enclosure Right Hand
SKU FTIC90
$3.08
90 Degree Inside Corner Back
SKU HTFP7-3
$6.38
7" Filler Piece Set (3 pieces)
SKU HTIC90
$5.25
90 Degree Inside Corner Top & Front
SKU HTOC90
$8.13
90 Degree Outside Corner
SKU HTTSHS
$0.72
Supply Tubing Support Hanger
SKU HTSBDC
$3.24
Support Bracket, Slide Cradle & Damper Clip
Finn Tube Baseboard (Enclosure and 3/4" Element Assembled with High Output)
SKU FTBAHO52
$30.12
2' Enclosure and 3/4" Element Assembled with High Output
SKU FTBAHO53
$45.18
3' Enclosure and 3/4" Element Assembled with High Output
SKU FTBAHO54
$60.24
4' Enclosure and 3/4" Element Assembled with High Output
SKU FTBAHO55
$75.30
5' Enclosure and 3/4" Element Assembled and High Output
SKU FTBAHO56
$90.36
6' Enclosure and 3/4" Element Assembled with High Output
SKU FTBAHO57
$105.42
7' Enclosure and 3/4" Element Assembled with High Output
SKU FTBAHO58
$120.48
8' Enclosure and 3/4" Element Assembled with High Output
SKU FTICHO45
$7.85
135 Degree Inside Corner for High Output
SKU FTOCHO45
$19.80
135 Degree Outside Corner for High Output
SKU FTJPHO2
$5.80
2" Joining Piece Set for High Output(3 pieces)
SKU FTECHOL3
$6.58
3" Solid End Cap Left Hand for High Output
SKU FTECHOR3
$6.58
3" Solid End Cap Right Hand for High Output
SKU FTHETHOL
$9.17
4" Hinged End Terminal Left Hand for Hight Output
SKU FTHETHOR
$9.17
4" Hinged End Terminal Right Hand for Hight Output
SKU FTECHOL4
$7.18
4" Solid End Cap Left Hand for High Output
$7.18
4" Solid End Cap Right Hand for High Output
SKU FTICHO90
$6.76
90 Degree Inside Corner for High Output
SKU FTOCHO90
$13.58
90 Degree Outside Corner for High Output
SKU FTWTHO4
$6.16
4" Wall Trim to Floor for High Output
SKU FTRTHHO
